Advanced 3D Through-Wall Imaging Radar with AI-Based Target Detection & Tactical Situational Awareness

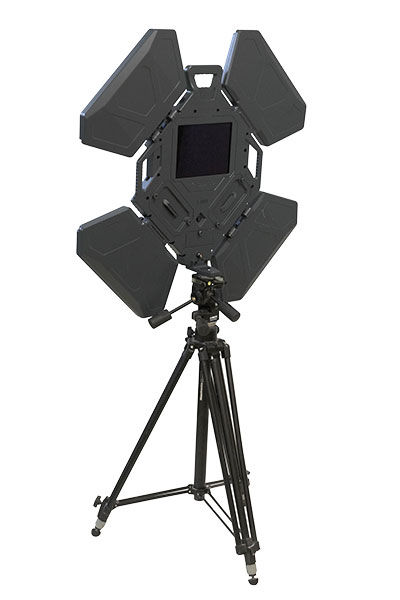

The XAVER™ 1000 by Camero-Tech is a next-generation high-performance through-wall imaging radar system engineered for military, special forces, law enforcement, intelligence, ISR, and search & rescue operations. Utilizing advanced Ultra-Wideband (UWB) radar technology, AI-based target tracking, and real-time 3D imaging capabilities, the XAVER™ 1000 delivers unprecedented situational awareness by detecting and visualizing live and static objects hidden behind walls, barriers, rubble, and building structures.

Designed as the successor to the XAVER™ 800 platform, the XAVER™ 1000 significantly enhances operational intelligence by providing high-resolution 3D imaging of human body posture, movement, orientation, and room layout in real time. The system can identify whether individuals are standing, sitting, lying down, or stationary, while also distinguishing between adults, children, and animals using AI-assisted target classification algorithms.

Optimized for tactical and ISR missions in urban and disaster environments, the XAVER™ 1000 gathers mission-critical intelligence including the presence of life, number of occupants, distance from the system, target orientation, and major room infrastructure elements hidden behind walls. This enables tactical teams to safely assess threats, plan room entries, conduct hostage rescue missions, and improve operational decision-making before breaching or intervention.

The system features a large integrated 10.1-inch touchscreen display with intuitive controls and multiple visualization modes including full 3D view, 2D plan view, side view, and range-over-time tracking. Advanced proprietary signal processing and image reconstruction algorithms provide highly detailed situational awareness even in cluttered or reinforced structural environments.

With a detection range of up to 42 meters and a wide 120° field of view in both azimuth and elevation, the XAVER™ 1000 can penetrate common construction materials including brick, concrete, reinforced concrete, drywall, adobe, plaster, stucco, and cement structures. Operators can deploy the system directly against walls or in stand-off mode from safer operational distances.

Designed for rapid field deployment, the radar system incorporates foldable antenna wings for compact transport and single-operator setup. Integrated Wi-Fi remote control capability enables wireless monitoring and operation from protected positions, while onboard recording and playback functionality supports post-mission analysis, training, and operational debriefing.

Built for demanding tactical environments, the XAVER™ 1000 combines ruggedized field construction with hot-swappable rechargeable battery systems delivering up to 3 hours of continuous operation. The system is fully radiation-safe and compliant with ICNIRP-1998 international exposure standards.
